Product Details:
|
| Name: | Rotary Premade Stand Up Ziplock Bag Pouch Doypack Milk Powder Packing Machine | Application: | Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Cornmeal Powder |
|---|---|---|---|
| Type: | Filling And Sealing Machine | Machine Material: | 304# Stainless Steel |
| Automatic Grade: | Fully Automatic | Customization: | Available |
| Warranty: | 12 Months | After-sale Service: | Online Support |
| High Light: | premade Vertical Powder Packing Machine,Ziplock Vertical Powder Packing Machine,Doypack milk powder packing machine |
||

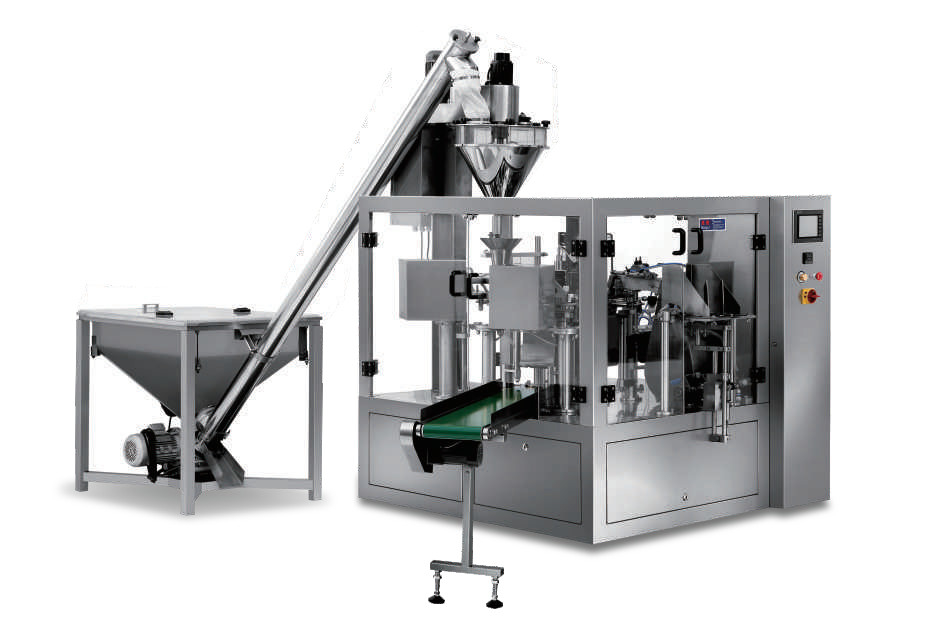

Rotary Premade Stand Up Ziplock Bag Pouch Doypack Milk Powder Packing Machine
Introduction:
1.Wide application range of packaging bag: single-layer PE, PE composite material, CPP composite material, aluminium foil and multi-layer composite film pre-made bags.
2. Bag shape: flat pocket, doypack bag, M-shaped bag, zipper bag, handbag, spout bag etc.
Scope of application: Powder: seasoning powder, milk powder, glucose, coffee, laundry powder etc.
Features:
1. AUTO BAG WIDTH ADJUSTMENT
When change bag width, no need manual adjustent anymore, just need to input the bad width, machine will automatic change.
2. SERVO ZIPPER OPENER
Adopt servo motor instead of air cylinde for zipper opening, make sure the action more accurate and stable.
3. INDEPENDENT WORK STATION
With 8 independent working station machine can achieve. Bag making, date printing, product feeding, nitrogen gas feeding 2 times bag sealing etc.
4. VACUUM POUCH OPENING
Adopt vacuum pump to open doypack instead of cylinder, make sure the pressure more stable and action more accurate.

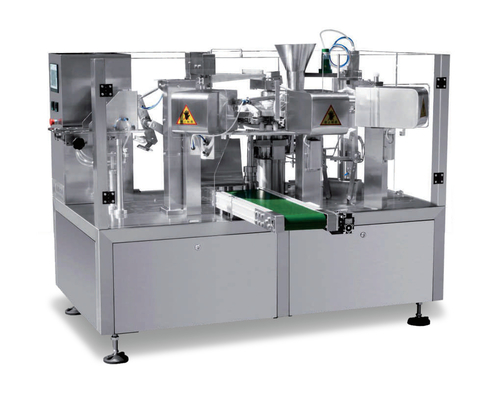

Rotary Premade Stand Up Ziplock Bag Pouch Doypack Milk Powder Packing Machine
Technical Parameters
| Model | 200 | 250 | 300 |
| Suitable bag size |
L:100-300mm, W:100-200mm |
L:150-350mm, W:150-250mm |
L:200-400mm, W:200-300mm |
| Speed | 10-60bags/min | ||
| Power supply | 3P/380V/50HZ/60HZ, 2.5KW | ||
| Air pump specification | 500N Litre/min, 6kg/㎡ | ||
| Compressed Air | 0.8Mpa | ||
| Air consumption | 0.6m³/min | ||
| Machine Size | L4200*W2000*H1900mm | ||
| Machine weight | 1130kg | ||
Rotary Premade Stand Up Ziplock Bag Pouch Doypack Milk Powder Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
